Product details
9V 0.5A Power Adapter
Main Specification
4.5W Power Adapter spec as follow:
|
AC Input |
|
|
Nominal Input Voltage |
AC 100V~240V |
|
Input Voltage Range |
AC 95V~264V |
|
Input Frequency |
50Hz~60Hz |
|
DC Output |
|
|
Output Power |
4.5W 9V |
|
Output error range |
5% |
|
Efficiency |
>86% |
|
Current ripple |
about 35mv |
|
Environment |
|
|
Operating Temperature |
-20°C—75°C |
|
Operating Humidity |
0%—95% |
|
Protection |
|
|
Over Voltage Protection |
Short Circuit Protection |
|
Over Current Protection |
Over Temperature Protection |
|
Certificates |
|
|
ROHS,UL,CUL,CETL,MEPS,SAA,PSE,GS,CE,CB,FCC,C-Tick,KC,BS,Level VI |
|
|
Package |
|
|
Inner Box |
Normally neutral white paper box or customized requirement |
|
Outer Carton |
Normally neutral standard carton or customized requirement |
Customized

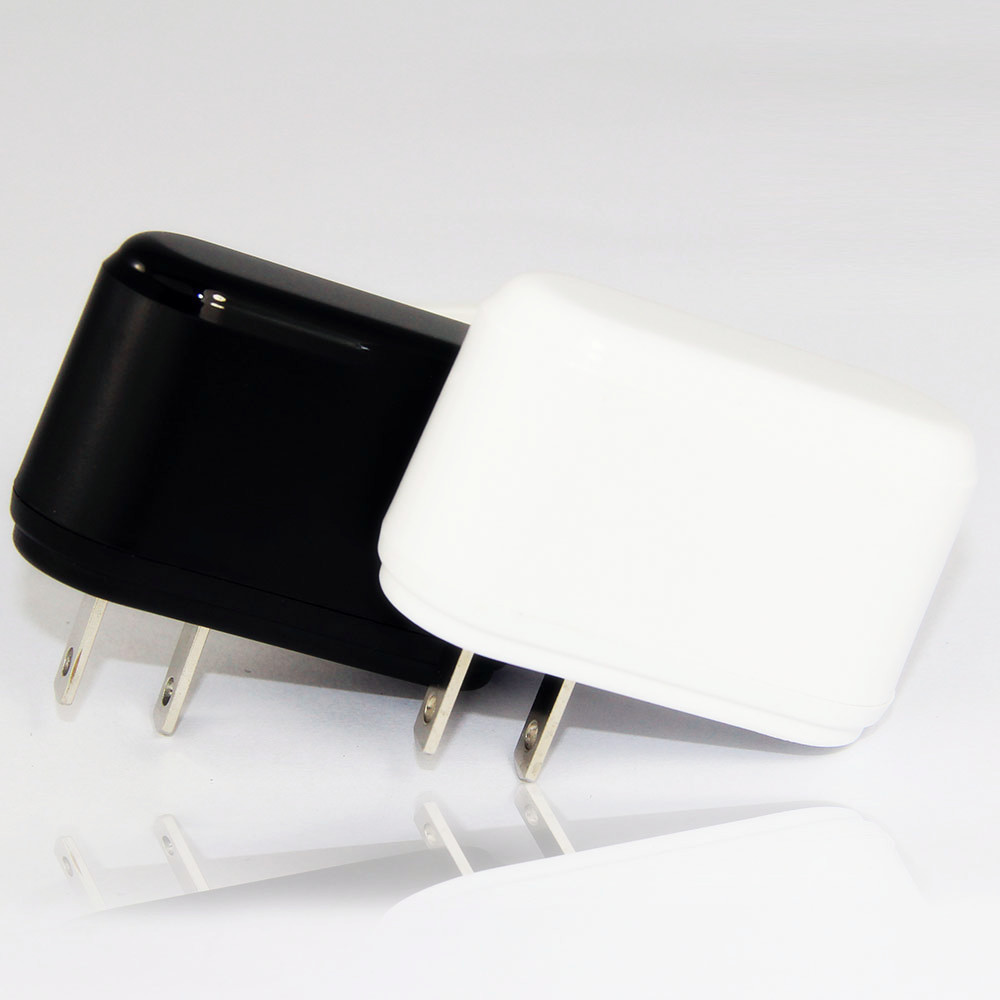

1. Black or White
2. Multiple plugs
Interchangeable wall plug power adapter for worldwide use, UK EU AU US EK plugs are available for your selection.
3. Various DC Plugs
Multiple DC tip sizes are available for your selection.
4. Optional DC line length
The default wire length is 1.5 m.
Muitiple Protection
